- Action: Off On
- Color: White
- Contact Configuration: 3-Way
- Contact Material: Silver
- Current Rating: 15 A
- Model #: ASPD1532W4
- UPC #: 785007040319
- SKU: 0253914
Your shopping list will be used for pickup in-store

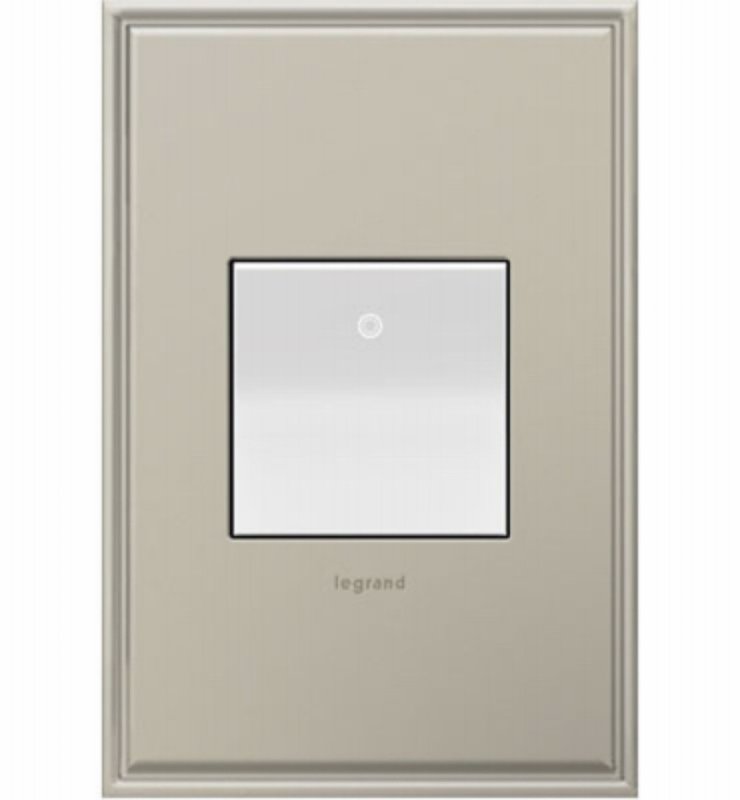

Adorne Paddle style switches feature a wide graceful paddle that works with a simple up and down motion, allowing you to turn lights on and off with ease. Integral silver contacts provide long-lasting performance Pair a Locator Status Light with your Paddle switch to add illumination and make it easier to locate in the dark.
- Heavy gauge steel frame is grounded via factory installed 12AWG ground lead, device and metal wall plates are self-grounded to frame
- Device snaps into the frame and self-aligns without any screws
- Wall plate snaps onto frame no screws required
- Modular system solves device alignment problems, improving fit and finish in multi-gang installations
- Back wire terminal screws are recessed into back of body
- Adorne devices can be installed in any existing standard wall box
- Use on its own to control a light from one location (single-pole operation) or pair with a second switch or dimmer to control a single light source from two locations (three-way operation)
- Pair with matching paddle dimmer switch or paddle fan speed control to create a uniform look throughout a room or your entire house
- 15 min or less to install
- Fits existing electrical box and does not require new wires for typical installation
| Action | Off On |
|---|
| Color | White |
|---|
| Contact Configuration | 3-Way |
|---|
| Contact Material | Silver |
|---|
| Current Rating | 15 A |
|---|
| Dielectric Strength | 1500 V |
|---|
| Dimensions | 1.77 in L x 1.77 in W x 1.5 in D |
|---|
| Housing Material | Polycarbonate |
|---|
| Mounting Type | Box |
|---|
| Number of Poles | 1 |
|---|
| Operating Cycles | 30000 |
|---|
| Temperature Rating | 30 deg C |
|---|
| Terminal Type | Back Wire |
|---|
| Voltage Rating | 120 V |
|---|
